Home / 48V LiFePo4 Battery Pack /

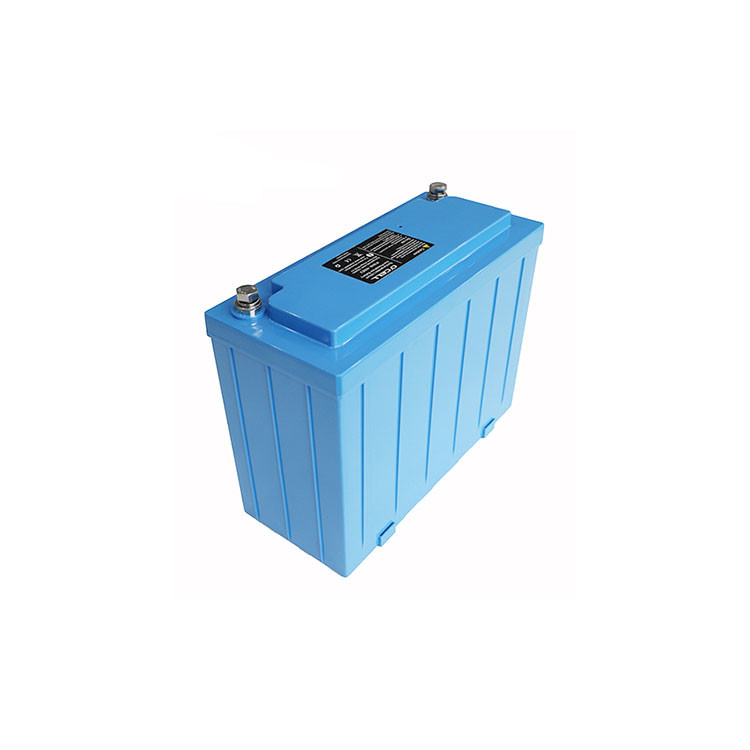

20ah 48v Lifepo4 Battery Pack 2048wh CE MSDS
20ah 48v Lifepo4 Battery Pack 2048wh CE MSDS
20ah 48v Lifepo4 Battery Pack 2048wh CE MSDS
  • 20ah 48v Lifepo4 Battery Pack 2048wh CE MSDS
  • 20ah 48v Lifepo4 Battery Pack 2048wh CE MSDS

20ah 48v Lifepo4 Battery Pack 2048wh CE MSDS

Nominal Voltage: 51.2V
Standard Charging: 8A
Energy: 2048wh
Max. Charging Current: 58.4V
Dimension: 345*155*270mm
Contact Us
-20℃~60℃
Operating Temperature Range
-10℃~35℃
Storage Temperature Range
≤ 40mΩ
Internal Resistance
Specifications
Payment & Shipping Terms
Product Description
Specifications
Nominal Voltage: 51.2V
Standard Charging: 8A
Energy: 2048wh
Max. Charging Current: 58.4V
Dimension: 345*155*270mm
Operating Temperature Range: -20℃~60℃
Storage Temperature Range: -10℃~35℃
Internal Resistance: ≤ 40mΩ
Highlight:

OEM 48V LiFePo4 Battery Pack

,

2048wh 48V LiFePo4 Battery Pack

,

OEM 48v 20ah lifepo4 battery pack
Payment & Shipping Terms
Minimum Order Quantity: 10
Price: negotiated price
Packaging Details: 48v lifepo4 carton packaging
Delivery Time: 5-14 work days
Payment Terms: Western Union, MoneyGram
Supply Ability: 10000 per week
Product Description

20ah 48v Lifepo4 Battery Pack 2048wh CE MSDS

In the process of cell manufacturing, we strive for perfection and continue to optimize production processes to ensure cell yield and batch consistency. Our consistent aim is to treat defect zero tolerance.

All of our lithium iron phosphate power battery series have been approved UL , CB , UN38.3 and other certifications. The cell is safe, reliable and stable.If you have the opportunity to come to China, we welcome you to visit our factory and take you to enjoy Chinese delicious food.
Product Parameters
Model No.
IFM48-400E2
Pack
IFR26650EC-16S12P
Nominal Capacity
40Ah
Minimum Capacity
37.2Ah
Nominal Voltage
51.2V
Energy
2048Wh
Max. Charging Voltage
58.4V
Discharge Termination
40V
Charging Method
CC/CV
Standard charging
8A
Max. Charging Current
80A
Standard Discharge
8A
Max.Continuous discharge current
80A
Cycle Life
0.2C 2000C/80%DOD
Internal Resistance
≤ 40mΩ
Dimensions
345*155*270mm
Weight (Approx)
20kg
Storage Temperature Range
-10℃~ 35℃
Operating Temperature Range
Discharge:-20℃~60℃


Performance Advantage

All of our lithium battery series have been approved UL , CB , UN38.3 and other certifications. The cell is safe, reliable and stable.

Automatic production line, high product quality and production efficiency, the whole process online monitoring, data traceability,CID safety design.
Product Feaeture
---Battery pack cycle life is long, in line with low carbon, energy saving, environmental protection values.
---Intelligent PACK power assembly line with MES system.
---The battery string provides high safety performance. When the temperature exceeds the threshold, the battery string automatically starts the protection function.
---The BMS management system runs data monitoring, SOC estimation and data transmission.
---Using lithium iron phosphate battery, high cycle times, safe and reliable.
---Uniform flow design, superior performance.
20ah 48v Lifepo4 Battery Pack 2048wh CE MSDS 020ah 48v Lifepo4 Battery Pack 2048wh CE MSDS 1
Q:Are you trading company or manufacturer?
A:We are YiChang original factory from hubei , China.
Q:Can I print my LOGO on it?
A: YES, LOGO/sticker/OEM/ODM welcomed.
Q:Can your company accpect OEM and ODM order?
A:We have our own factory and professional design and development team, just tell us your requirements, we can design and produce your own brand of products.
Q:Can the bms be removed and replaced if it breaks? Can the case be opened to replace a bad cell?
A: YES, the case can be opened to replace the BMS & cells on the guidance of engineer.
Q. Do you have Blue-tooth communication with your batteries?
A: Yes, please let us know if you NEED to add Blue-tooth communication with the batteries. and YOU can rename your battery in the App.
Q:Are you battery real capacity?
A: All of our battery cells with Grade A,100% new and real capacity. We promise 100% Top grade A. If you found it is not A battery cell, you can contact us for refund.
Q:What warranty do I have?
A:According to different products, we have different years of after-sales protection.Quality assurance and after-sales service, we have always attached great importance to the part, because the customer is god.
Q: What is your term of payment?
A: We adopt T/T,Paypal,Alibaba payment way and so on. If order amount>10K usd, The payment term will be 30%T/T for deposit and the balance before shipment.
Q:How is your delivery date and shipping?
A:Normally,our delivery data is about 7-10 days after confirmed,but it also depends on the quantity and your location situation.
And we usually use FedEx,DHL,UPS,and other maritime transport methods. Please inform us in advance if you have a request for transportation.
